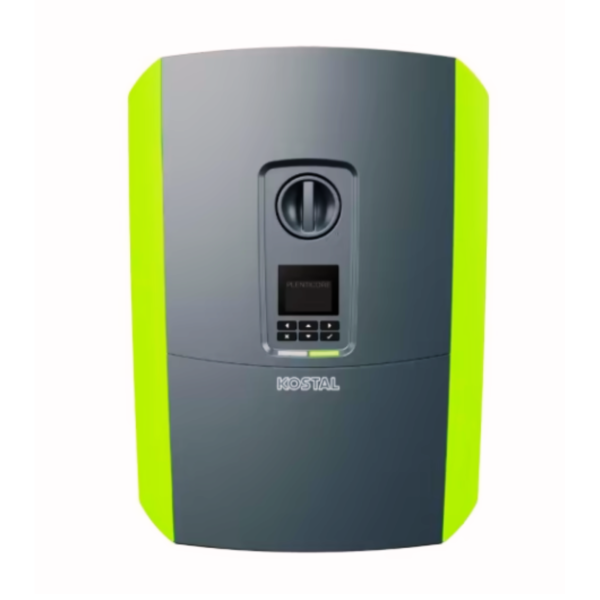

Kostal – Plenticore Plus 5.5 G2

Plenticore plus 5.5 g2 – 3-phase 5.5 kw inverter prepared for storage – 3 mppt ( 2 mppt if used with storage system)

Technical Specifications

AC Surge Arrester: No

CEI 0-21: Yes

String Fuses: No

Number of Connections: 1+1+1

DC Surge Arrester: No

Phase: Three phase

Dimensions: 563x405x233 mm

WI-FI Monitoring: Included

MPPT: 2+1

Power: 5.5 kW

Weight: 19.6 kg

Oversizing: 8250

Hybrid: Yes

ETH Monitoring: Included

I Max MPPT: 13/13/13 A

DC disconnector: Yes

Degree of protection (IP): 65

CEI 0-16: No
